Cleaning Washing Bottle Machine Detergent Drinks Cosmetics

Place of Origin China
Brand Name Jinxin
Minimum Order Quantity 1
Price negotiable
Packaging Details carton box

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Supply Ability 100 Units A Year Model NO. CPR-48
Usage Inner Packing Type Packaging Sealing Machine
Packaging Material Mechanical Properties Flexible Container Sealing Material Type Liquid
Automatic Or Not Fully Automatic Machine Material Stainless Steel
Transport Package The Wooden Case Specification 2000mmx1500mmx2200mm
Trademark Jinxing Origin China Jiangsu
HS Code 8422301090 After-sales Service Site Installation, Site Maintenance
Warranty 12 Months Packaging Box
Automatic Grade Automatic Packaging Material Bamboo, Wood
Application Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Seasoning Customization Available | Customized Request
High Light

Cleaning washing bottle machine


Detergent washing bottle machine


Cosmetics glass bottle washer

Leave a Message
Product Description

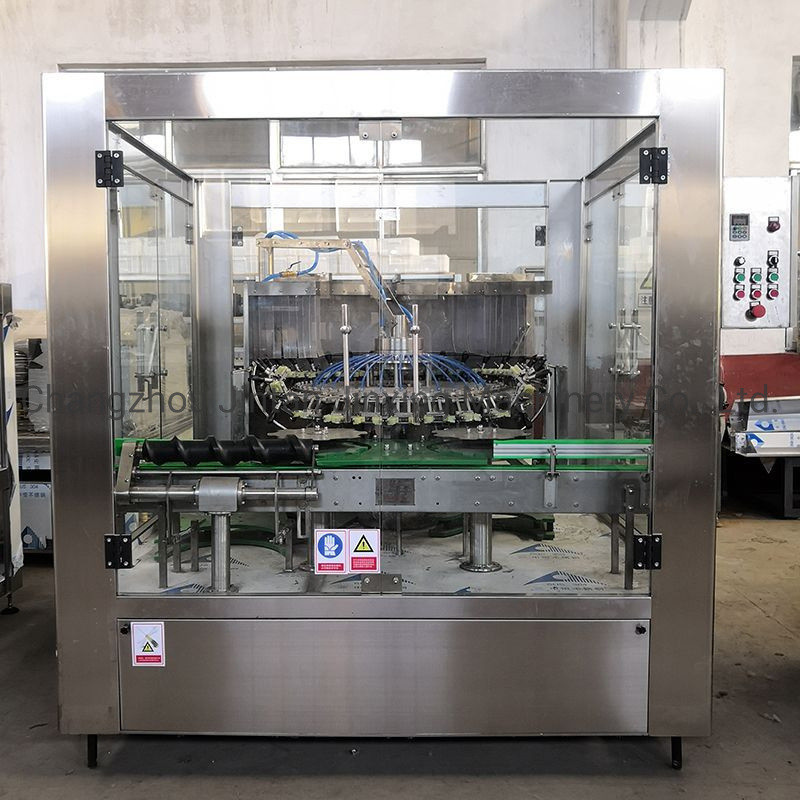

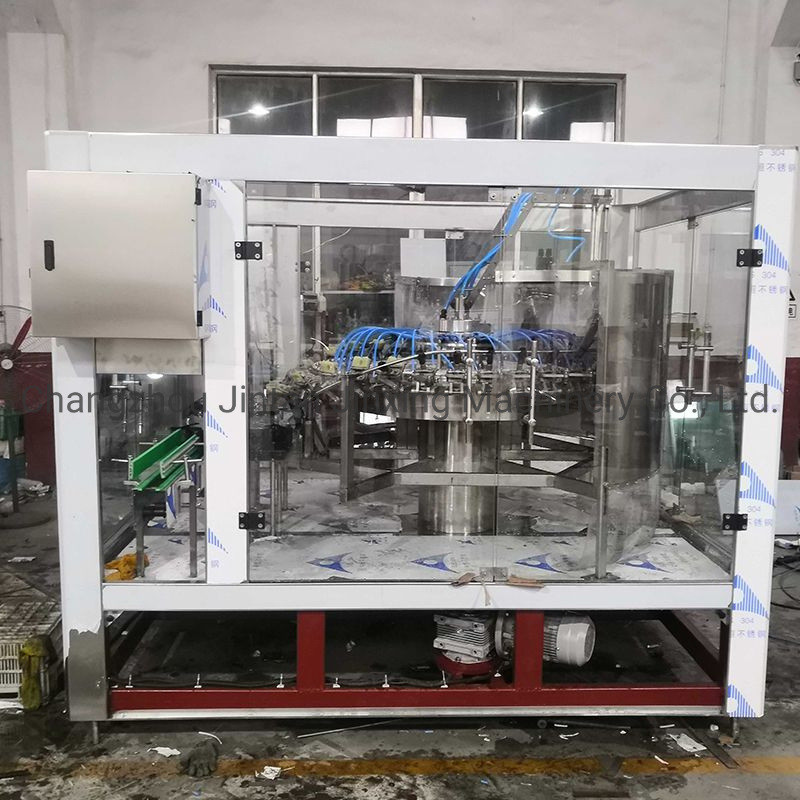

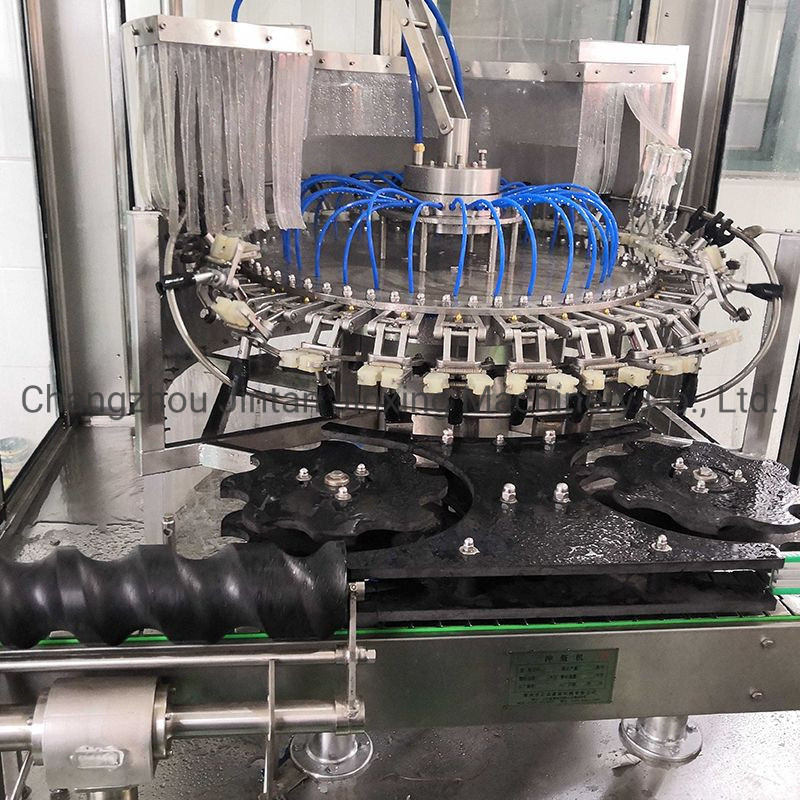

Automatic 18.9L barrel washing machine is a special cleaning equipment for cleaning the inside and outside of 18.9L barrel. Its design is novel and unique, and the design of brush is also unique. This equipment use the integration of machine, electricity, gas. No need manual,high automatic, improve efficiency and save cost. It can be customized according to the needs of manufacturers, while cleaning the inside and outside of the barrel, high efficiency. It is the best supporting equipment for automatic filling machine.


The whole machine is relatively closed to prevent water from spilling out. When the bottle is sent to the washing bottle position by conveyor belt, the manipulator send the barrel to the lifting position of the washing bottle, the lifting device will lift the bottle to the washing bottle position, the bottom brush will rise, clamping the bottle by the manipulator, at the same time the brush and high pressure pump started, continuous injection of the barrel body, the bottle rotates with the brush, completely clean bottle body, bottle neck, bottle bottom and bottle inside by brushand water. After the cleaning is completed, the lifting device and manipulator will send the bottle to the conveyor belt, the bottle is sent to the next process by conveyor belt. The whole machine is controlled by PLC and equipped with independent control electrical box.

Customizable Full-Automatic Pet Bottle Washing Machine Glass Bottle Washing Machine

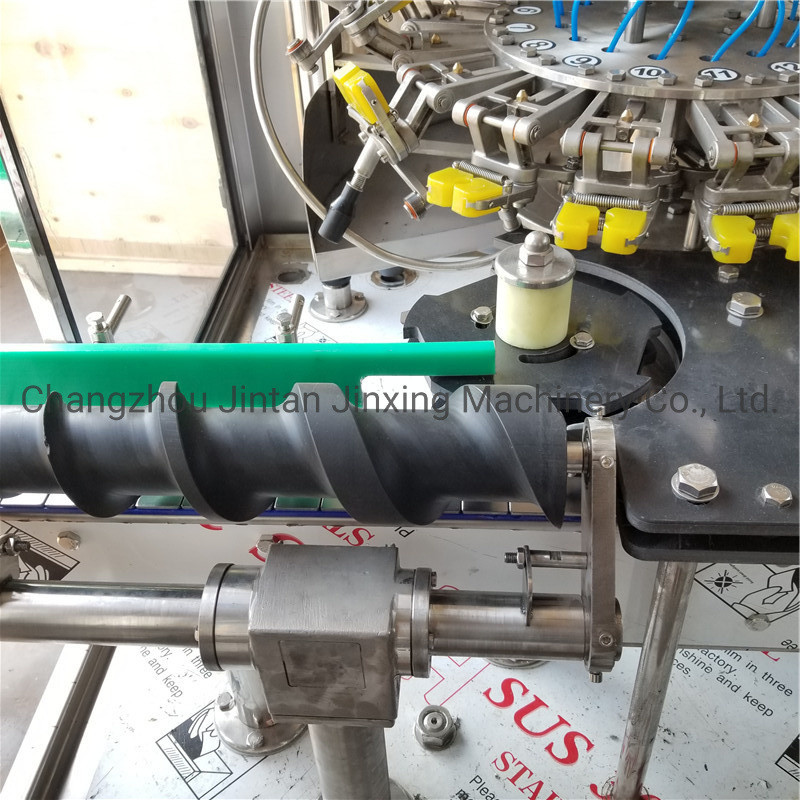

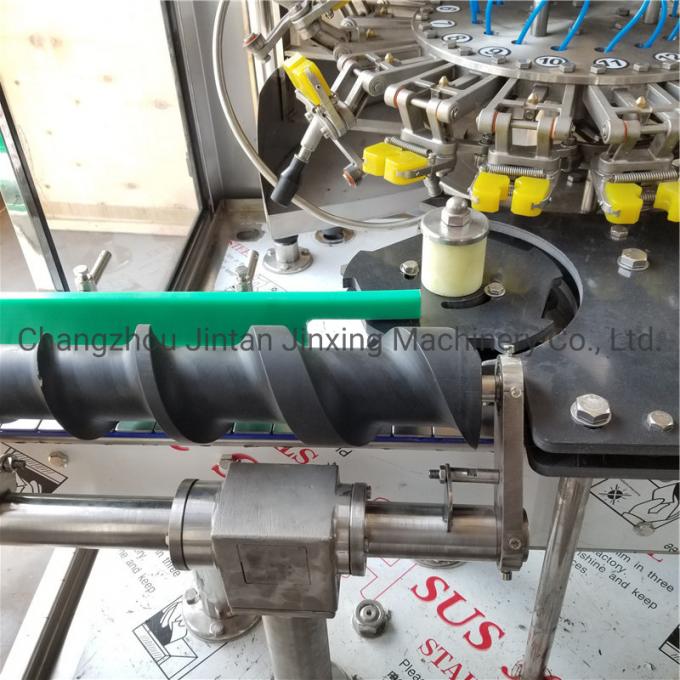

Nylon split bottle screw, bottle smoothly, with the bottle into the star wheel, faster speed, no lag.

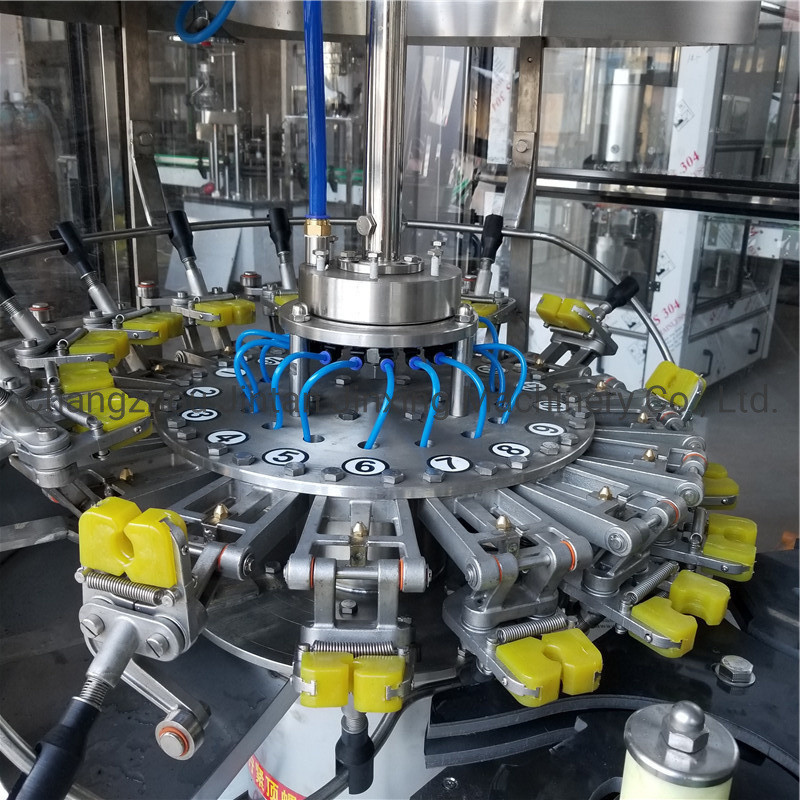

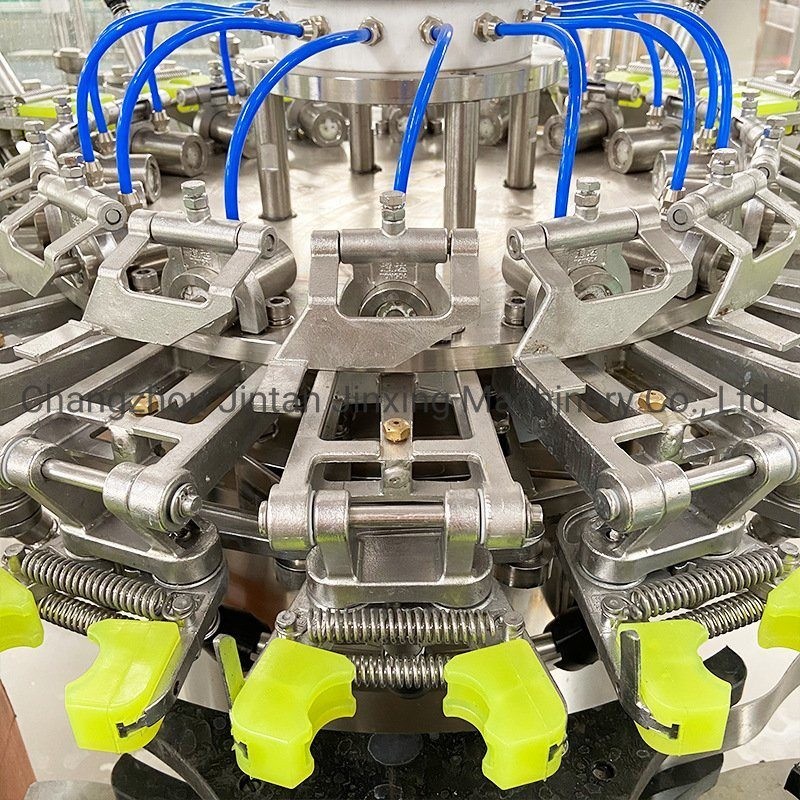

The whole machine is made of SUS304 or 316L stainless steel material, in line with food safety requirements. Nylon material processing bottle clip, clip bottle firmly, do not damage the bottle.
Customizable Full-Automatic Pet Bottle Washing Machine Glass Bottle Washing Machine

Fully automatic bottle washing machine
Purpose and Introduction:
This machine is mainly composed of conveyor belt, star wheel, bottle clamp, gas and water cleaning machine, it is matched with oven, filling machine and other single filling production line, can be used to wash bottles. Through the star wheel to send bottles, bottles into the turnover system, water injection or cleaning agent pressurized by the sanitary pump for cleaning process, complete the cleaning process, and then into the air cleaning and drying process. When photoelectric detection, open the inlet valve for high-pressure air blowing, turn over the bottle and send it to the bottle conveyor belt by star wheel for output. It's all done. In order to save water and gas, the filter system adopts solenoid valve control switch. The main machine adopts frequency conversion AC motor stepless speed control. The machine has the advantages of compact structure, small occupation area, good energy-saving effect, simple operation, good reliability and convenient maintenance and adjustment.
The equipment is suitable for multi-specification bottles, different materials, different shapes (round bottles, special-shaped bottles, flat bottles, square bottles, etc.). Suitable for all kinds of bottle inside and outside cleaning and blowing dry. According to customer service requirements, the nozzle can spray water in the bottle mouth, can also be extended into the bottle cleaning.

Our Advantages
Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional filling solution
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
Our services
The sample service

1. We can send you the production video of the machine.
You are welcome to visit our factory at any time. You can see the machines in operation here. We'll arrange to pick you up when you come.
Customized service
1. We can design the machine according to your requirements (material, power, filling type, bottle type, etc.).
2. We will also give you professional advice.
After-sales service
1. We will provide the BILL of lading in time to ensure that you can get the qualified machine quickly.
2. After you complete the preparation conditions, our engineers will go to your factory for installation, testing and training.
We provide one year warranty, free of charge to provide vulnerable parts.
Successful cases
Through efficient cost control, we find the right balance with our customers: diversified production range, high-end packaging form. At the same time, the efficient operation of equipment improves the market competitiveness of enterprises. Wangji will provide customers with customized beverage production line solutions, including bottle design, label design, beverage preparation, packaging system and advertising solutions of the best solutions, to help customers easily start businesses, easy access to the market.


Frequently asked Questions:
Q1. May I visit your factory?
A1: Ok, our factory address: No.158 Huaxing Road, Jintan, Changzhou city, Jiangsu Province, China.

Q2. If we have a new product sample, could you help analyze and design the machine?
A2: Yes, our technicians can help analyze, design and test the new products you offer.

Q3. What can you buy from us?
A3: Bottle unscrambling machine, bottle washing machine, filling machine, capping machine, labeling machine, unpacking machine, packing machine.

Q4. What spare parts can you provide?
A4: After we have installed all the equipment, we will send you a list of spare parts for your reference.

Q5. What services can we provide?
A5: Delivery terms accepted :FOB,FCA,EXW;
Currency of payment accepted: USD, Euro;
Payment methods :T/T, TELEgraphic transfer, PayPal;
Language: English, Chinese
