100 Bottles / Min Automatic Unscramble Bottle Machine
| Place of Origin | China |
|---|---|
| Brand Name | Jinxin |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | carton box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Supply Ability | 100 Units A Year | Model NO. | LPS |
|---|---|---|---|
| Feed Cylinder Structure | Multi-Room Feeding | Dosing Device | Plunger |
| Filling Principle | Pressure | Packaging Container Lifting Structure | Chute Pneumatic Combination Lifting |
| Structure | Linear | Packaging | Bottle |
| Packaging Material | Plastic | The Material | Stainless Steel |
| Transport Package | Packed In Wooden Cases | Specification | 2400mmx1600mmx2200mm |
| Trademark | Jinxing | Origin | China Jiangsu |
| HS Code | 8422301090 | After-sales Service | Site Installation, Site Maintenance |
| Warranty | 12 Months | Type | Piston Filling Machine |
| Automatic Grade | Automatic | Material Type | Liquid |
| Filling Valve Head | Multi-Head | Customization | Available | Customized Request |
| High Light | Automatic unscramble bottle machine,100BPM unscramble bottle machine,330mL unscrambler machine pet bottle |
||
Product Description
The machine is used in ordering disordered polyeter bottles, the disordered bottles are carried into the storing bottle Section of the ordering bottle machine, with the help of the pushing force of the rotating disk, the bottle are ordered into Bottle mouth-up-position and are carried into the next process with the air-transfering type conveying bottle system. High speed operatin, easy to combine with all kinds of filler or filling prodution line.
1) Suitable for unscrambling disordered polyester bottles
2) Aligns bottles and discharges them by vacuum conveyor
3) PLC program controlled
4) Automatic.
5) High speed operation
6) Easy to combine with all kinds of fillers or filling production lines
The automatic bottle unscrambler is used for bottle sorting and conveying. It works with round bottles, square bottles and flat bottles of different sizes and materials.

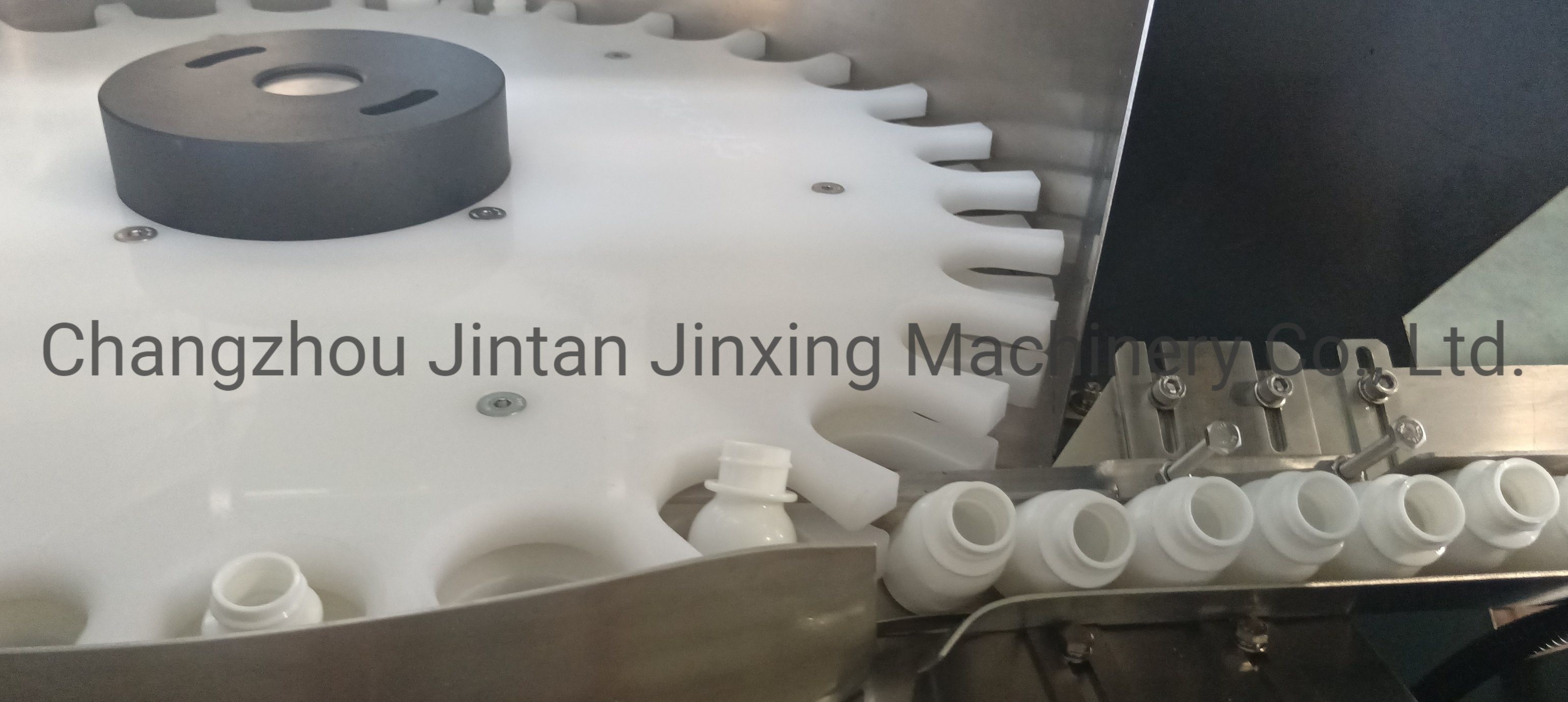

The turntable is customized according to the size of the bottle to ensure fast and stable correction of the bottle with the bottle mouth down, so that all the bottles with the bottle mouth up, output to the conveyor belt, improve the production efficiency.
Production capacity: 3000-6000 bottles/hour (330mL-550ml)
Applicable bottle diameter :∮35-∮80
Height of applicable bottle :60mm-150mm
Host size: 1800mm* 950mm*1550mm
Hoist size: 2000*1050*1600
Weight: about 400 kg
Voltage: 220 v / 50 hz
Power: 3 kW
Source: 0.6 Pa
Production line height: manufactured according to the height of the filling line (adjustment range: 100mm)
Applicable industries: bottled water production line, bottled beverage production line, chemical product production line, bottled cosmetics production line, etc.
Changzhou Jintan Jinxing Machinery Co., LTD., founded in 2004, is located in The Yangtze River Delta Economic development Zone changzhou Jintan District, is engaged in packaging machinery products manufacturing, sales and import and export business as one of the intelligent equipment manufacturing enterprises.
The main products of the company are rational bottle machine, bottle washing machine, filling machine, capping machine, labeling machine, packing machine, palletizing machine, etc.
The company is mainly engaged in pesticide chemical industry, petrochemical industry, cosmetics, medicine, food industry intelligent workshop overall solution and landing turnkey project business. The company attaches importance to independent innovation, product technology and quality in the domestic industry in an important position, with leading technical innovation ability and high-quality staff team for domestic and foreign customers to provide a number of reliable packaging production line automation overall personalized solutions.
Our services
The sample service
1. We can send you the production video of the machine.
You are welcome to visit our factory at any time. You can see the machines in operation here. We'll arrange to pick you up when you come.
Customized service
1. We can design the machine according to your requirements (material, power, filling type, bottle type, etc.).
2. We will also give you professional advice.
After-sales service
1. We will provide the BILL of lading in time to ensure that you can get the qualified machine quickly.
2. After you complete the preparation conditions, our engineers will go to your factory for installation, testing and training.
We provide one year warranty, free of charge to provide vulnerable parts.
Successful cases
Through efficient cost control, we find the right balance with our customers: diversified production range, high-end packaging form. At the same time, the efficient operation of equipment improves the market competitiveness of enterprises. Wangji will provide customers with customized beverage production line solutions, including bottle design, label design, beverage preparation, packaging system and advertising solutions of the best solutions, to help customers easily start businesses, easy access to the market.
Q: How can I know the quality of your machines before I order?
A: We have many projects in different countries, with the customers' permission, we can guide you to visit the factories and see the machines running. You are also very welcome to visit our company in China to see the machine running in our factory.
Q: How can we check our machines if we order the machines from you?
A: We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
Q: What is the guarantee or warranty of your machines?
A: We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
Q. If we have a new product sample, could you help analyze and design the machine?
A: Yes, our technicians can help analyze, design and test the new products you offer.
Q: For a new starter, how can you help me start and run a water or beverage bottling plant?
A: We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make t he machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work in your factory as a production manager.
