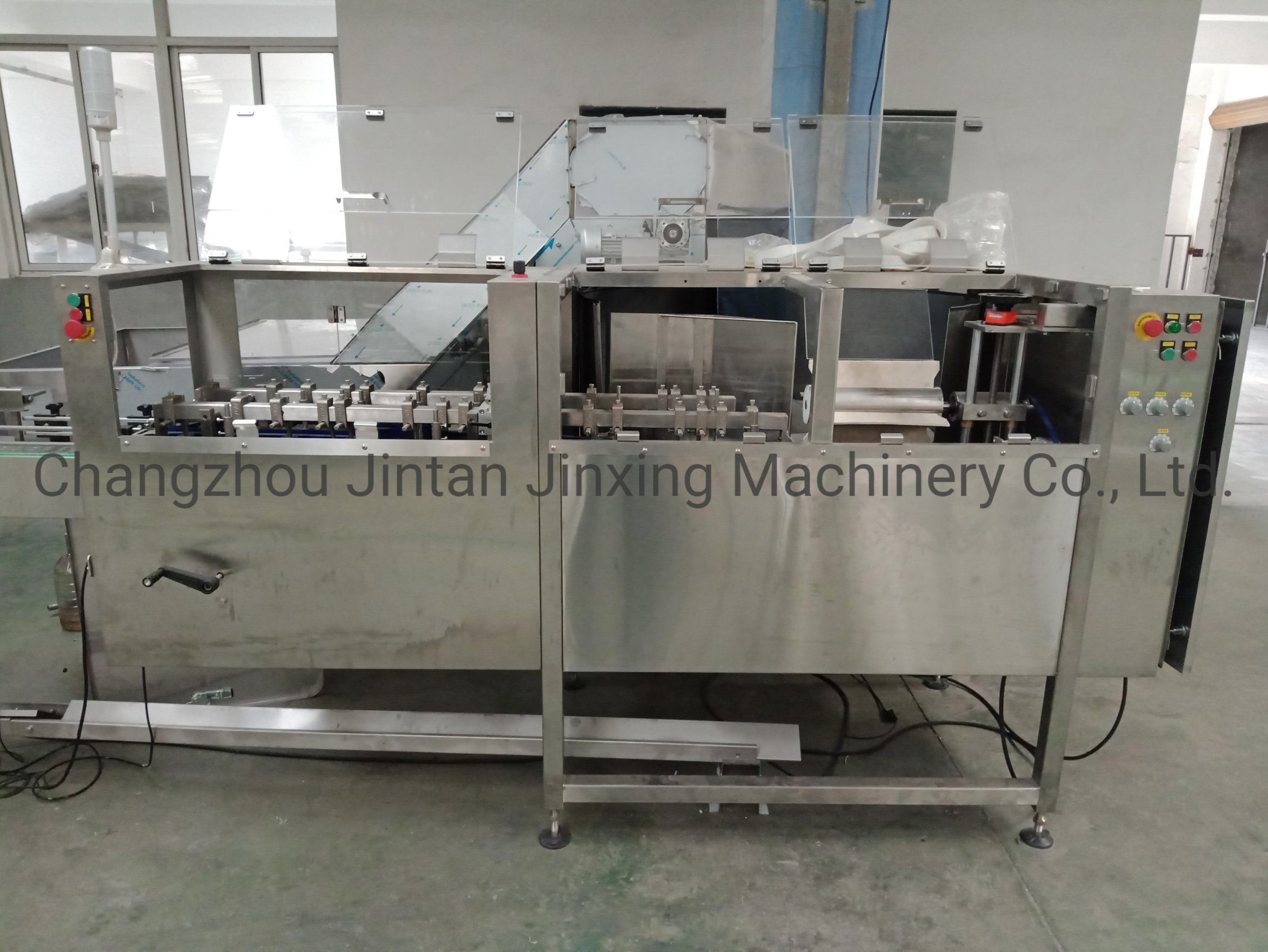

High Speed Round PET PE Plastic Unscramble Bottle Machine Automatic

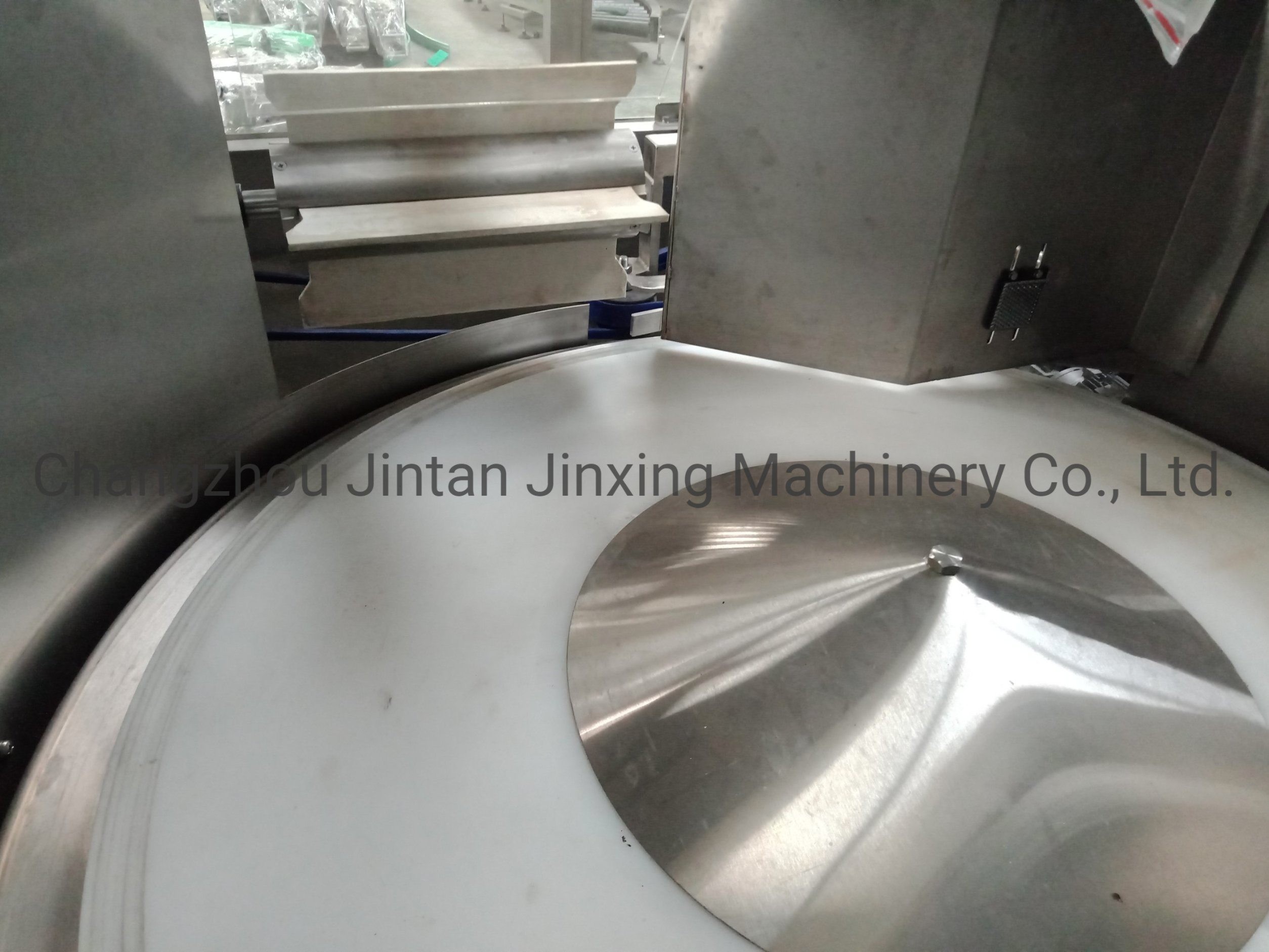

Large capacity storage barrel, the bottle by the centrifugal force inside the barrel spiral transfer. To change bottles of different specifications, it is necessary to increase or decrease the rubber strip of the centrifugal plate. There is photoelectric detection to control the number of bottles in the barrel, and with the bottle feeding machine, the production efficiency is higher.

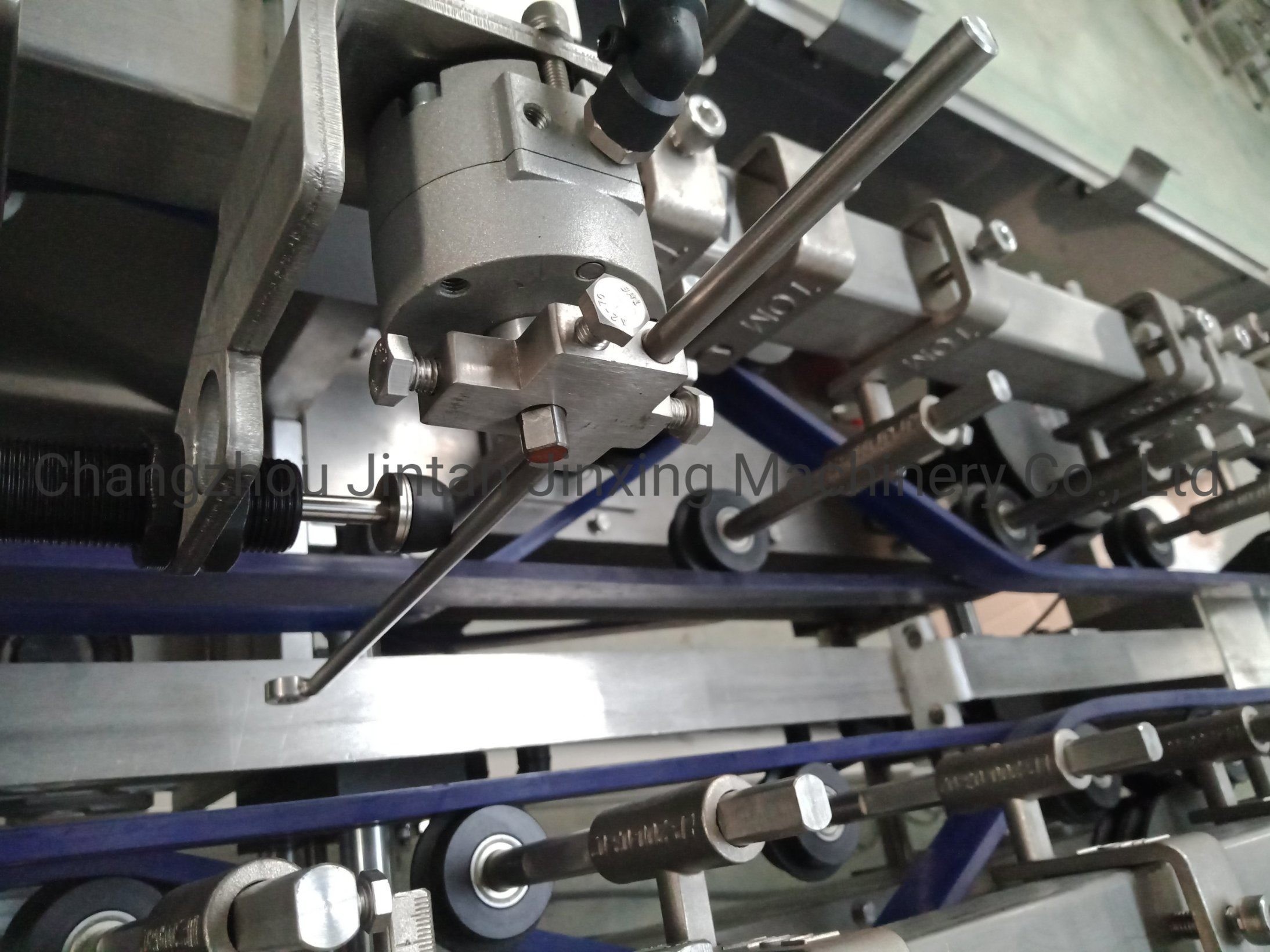

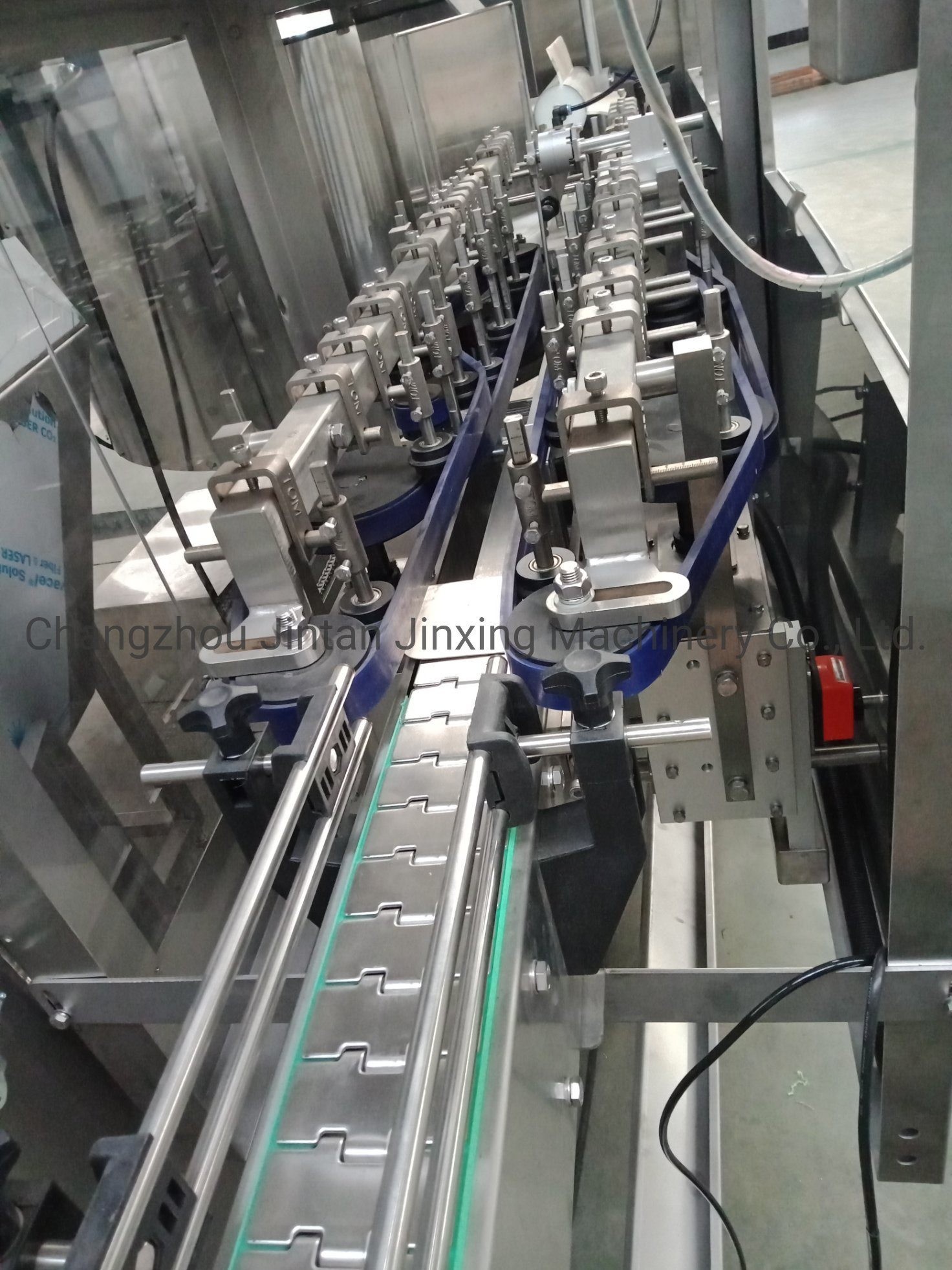

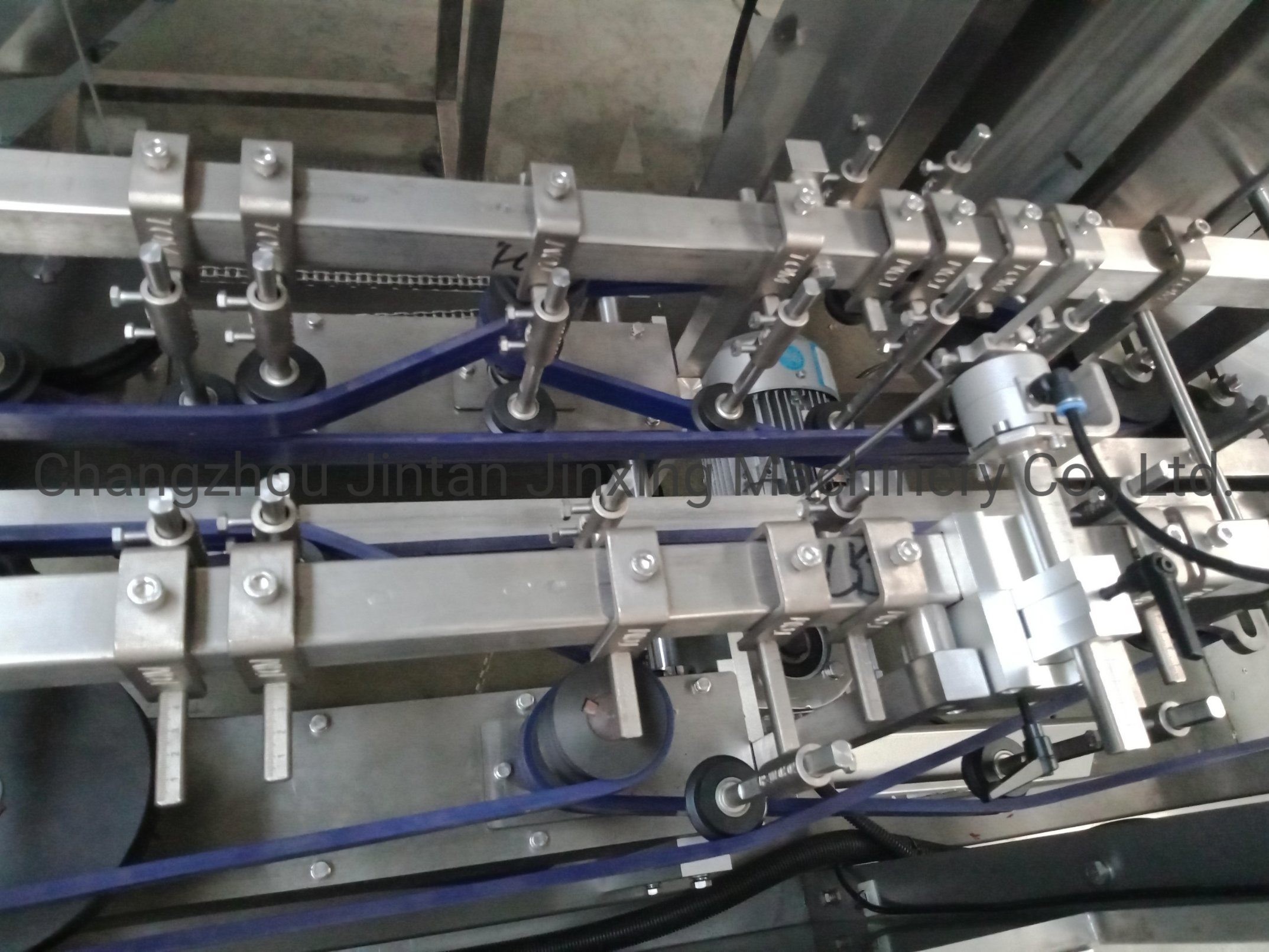

The bottle is sent to the bottle stand device by the clamping belt through the anti-bottle mouth straightening device, and the bottle mouth is uniformly arranged upward and then sent to the conveyor belt for output. The clamping belt can adjust the width according to the diameter of the bottle.

Production capacity: 5000-8000 bottles/hour (330mL-550ml)
Applicable bottle diameter :∮35-∮100
Height of applicable bottle :150mm-340mm
Host size: ∮2200mm* H1750mm
Hoist size: 2800*1250*2100
Weight: about 900 kg
Voltage: 220 v / 50 hz
Power: 3 kW
Source: 0.6 Pa
Production line height: manufactured according to the height of the filling line (adjustment range: 100mm)
Applicable industries: bottled water production line, bottled beverage production line, chemical product production line, bottled cosmetics production line, etc.

Changzhou Jintan Jinxing Machinery Co., LTD., founded in 2004, is located in The Yangtze River Delta Economic development Zone changzhou Jintan District, is engaged in packaging machinery products manufacturing, sales and import and export business as one of the intelligent equipment manufacturing enterprises.

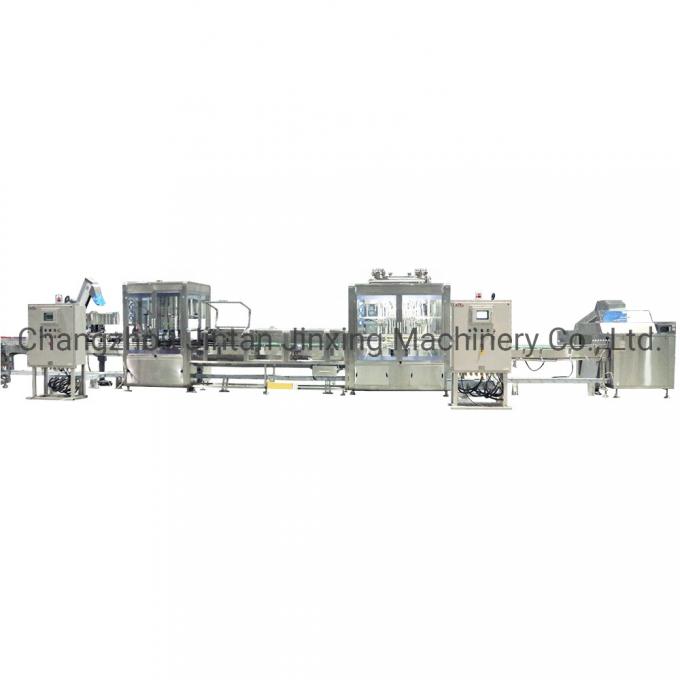

The main products of the company are rational bottle machine, bottle washing machine, filling machine, capping machine, labeling machine, packing machine, palletizing machine, etc.
The company is mainly engaged in pesticide chemical industry, petrochemical industry, cosmetics, medicine, food industry intelligent workshop overall solution and landing turnkey project business. The company attaches importance to independent innovation, product technology and quality in the domestic industry in an important position, with leading technical innovation ability and high-quality staff team for domestic and foreign customers to provide a number of reliable packaging production line automation overall personalized solutions.

Q: How can I know the quality of your machines before I order?
A: We have many projects in different countries, with the customers' permission, we can guide you to visit the factories and see the machines running. You are also very welcome to visit our company in China to see the machine running in our factory.

Q: How can we check our machines if we order the machines from you?
A: We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.

Q: What is the guarantee or warranty of your machines?
A: We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.

Q. If we have a new product sample, could you help analyze and design the machine?
A: Yes, our technicians can help analyze, design and test the new products you offer.

Q: For a new starter, how can you help me start and run a water or beverage bottling plant?
A: We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work in your factory as a production manager.
