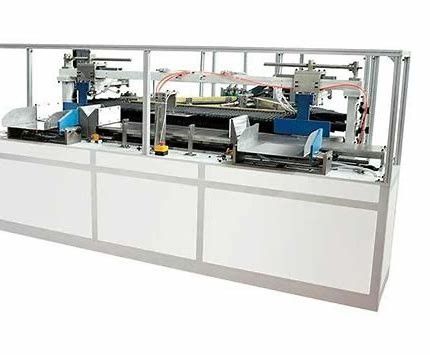

Paper Plastic Box Stacking Machine 1/6 Fully Automatic High Speed

Place of Origin China
Brand Name Jinxin
Minimum Order Quantity 1
Price negotiable
Packaging Details carton box

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Key Selling Points High-accuracy Application APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Bags, Barrel, Belt, Bottles, CANS, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch Packaging Material Glass, Metal, Paper, Plastic, Wood
Automatic Grade Automatic Driven Type Electric
Voltage 380V/50HZ Power 15.3KW
High Light

Plastic Box Stacking Machine


Paper Box Stacking Machine


High Speed automated palletiser

Leave a Message
Product Description

1/6 Fully Automatic High-Speed Paper Box Product Plastic Stacking Machine


• 1 box at a time will be transported into the stacking machine.
• The lowest box is clamped pneumatically and the entire stack is lifted up.
• When the required number of boxes is reached, the stack will roll out off the machine onto a driven roller conveyor.
• After transporting the stack, the machine will start stacking a new stack.
• The outfed stack will be rotated (if necessary), before placing on a pallet.
• A sliding arm, will push the collected stacks together on a 'slip off' plate.
• When the required number of stacks for 1 pallet are collected, the sliding arm will push all the stacks onto a pallet.
• The pallet is placed underneath the 'slip off' plate, so the boxes will be pushed onto the pallet without friction.


1. Safe and stable
(1) It can directly work side by side with humans without using safety fences for isolation, and has a high degree of reliability and safety; (2) Support 10-level collision detection and sensor safety detection; (3) Provide 16 safety I/O interfaces, and the safety function will not be lost when a single fault occurs; (4) The terminal will not fall when the power is off, and the product is safe and stable;
2. Flexible deployment
(1) Integrated design, light and flexible, small footprint; (2) The deployment of new tasks on workstations is simple, quick and efficient;
3. Simple programming
(1) The programming method can be mastered in half an hour, and the simple programming can be completed in one hour; (2) Visual programming is simple and efficient, and the robot can be easily manipulated without being proficient in programming languages;
4. Flexible production
Fast switching of multiple functional scenarios, flexible production can be achieved by man-machine collaboration, two-machine collaboration, multi-machine collaboration, etc.;
5. Wide range of applications
Widely used in food, medicine, 3C, daily chemical, e-commerce and other industries;


PLC Siemens
Frequency Converter Danfoss
Photoelectricity Inductor SICK
Driving Motor SEW
Pneumatic Components SMC
LOW-voltage Apparatus Schneider
Touch Screen Schneider
Servo Panasonic
Technical Parameter:
Stack Speed 40 cartons per minute, 4-5 layers per min
Height of Carton case >100mm
Max. carrying capacity /layer 150Kg
Max. carrying capacity /pallet Max 1500kG
Max. stack height 1800mm
Installation Power 15.3KW
Air Pressure ≥0.6MPa
Power 380V.50Hz , three-phase four-wire
Consumption of the Air 600L/Min
Size of the Pallet According to customer reqirement



Product Characteristics

When the size, volume, shape and pallet size of the customer's products change, only a little modification can be made on the touch screen. Palletizing speed 500 bags/hour. Only need to position grasp starting point and place point, teaching method is simple and easy to understand. All controls can be operated on the control cabinet screen, the operation is very simple.


Product advantage

1. Low energy consumption. Greatly reduce the operating cost of customers.
2. Simple structure and few parts. Therefore, the failure rate of parts is low, the performance is reliable, the maintenance is simple, the required inventory parts are few.
3. Small footprint. It is conducive to the layout of the production line in the customer's workshop, and can set aside a large warehouse area.


Our Advantages
Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional filling solution
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
Our services
The sample service

1. We can send you the production video of the machine.
You are welcome to visit our factory at any time. You can see the machines in operation here. We'll arrange to pick you up when you come.
Customized service
1. We can design the machine according to your requirements (material, power, filling type, bottle type, etc.).
2. We will also give you professional advice.
After-sales service
1. We will provide the BILL of lading in time to ensure that you can get the qualified machine quickly.
2. After you complete the preparation conditions, our engineers will go to your factory for installation, testing and training.
We provide one year warranty, free of charge to provide vulnerable parts.
Successful cases
Through efficient cost control, we find the right balance with our customers: diversified production range, high-end packaging form. At the same time, the efficient operation of equipment improves the market competitiveness of enterprises. Wangji will provide customers with customized beverage production line solutions, including bottle design, label design, beverage preparation, packaging system and advertising solutions of the best solutions, to help customers easily start businesses, easy access to the market.


Frequently asked Questions:
Q1. May I visit your factory?
A1: Ok, our factory address: No.158 Huaxing Road, Jintan, Changzhou city, Jiangsu Province, China.

Q2. If we have a new product sample, could you help analyze and design the machine?
A2: Yes, our technicians can help analyze, design and test the new products you offer.

Q3. What can you buy from us?
A3: Bottle unscrambling machine, bottle washing machine, filling machine, capping machine, labeling machine, unpacking machine, packing machine.

Q4. What spare parts can you provide?
A4: After we have installed all the equipment, we will send you a list of spare parts for your reference.

Q5. What services can we provide?
A5: Delivery terms accepted :FOB,FCA,EXW;
Currency of payment accepted: USD, Euro;
Payment methods :T/T, TELEgraphic transfer, PayPal;
Language: English, Chinese
