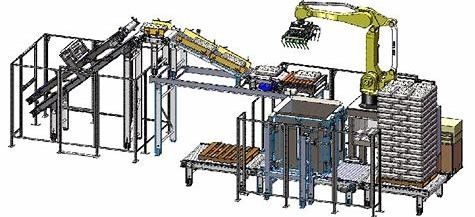

Chemical Box Stacking Machine Automatic Robot Palletizer
| Place of Origin | China |
|---|---|
| Brand Name | Jinxin |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | carton box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Selling Points | High-accuracy | Application | APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles |
|---|---|---|---|
| Packaging Type | Bags, Barrel, Belt, Bottles, CANS, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch | Packaging Material | Glass, Metal, Paper, Plastic, Wood |
| Automatic Grade | Automatic | Driven Type | Electric |
| Voltage | 380V/50HZ | Power | 15.3KW |
| High Light | Chemical Box Stacking Machine,Box Stacking Machine Commodity,Textiles automatic robot palletizer |
||
Product Description
★ touch screen operation to achieve man-machine dialogue, can show the production speed, cause of the malfunction and location, high degree of automation;
★ Adopting PLC programmable sorting carton stacking stowage, pallet supply and discharge can be programmed into the control;
★ stack adjustment easy, simple, can be carried out on the touch screen;
★ Stacking stable, efficient, can greatly save manpower;
★ pallets automatically supply pallets.
| PLC | Siemens |
| Frequency Converter | Danfoss |
| Photoelectricity Inductor | SICK |
| Driving Motor | SEW |
| Pneumatic Components | SMC |
| LOW-voltage Apparatus | Schneider |
| Touch Screen | Schneider |
| Servo | Panasonic |
Technical Parameter:
| Stack Speed | 40 cartons per minute, 4-5 layers per min |
| Height of Carton case | >100mm |
| Max. carrying capacity /layer | 150Kg |
| Max. carrying capacity /pallet | Max 1500kG |
| Max. stack height | 1800mm |
| Installation Power | 15.3KW |
| Air Pressure | ≥0.6MPa |
| Power | 380V.50Hz , three-phase four-wire |
| Consumption of the Air | 600L/Min |
| Size of the Pallet | According to customer reqirement |
Product Characteristics
When the size, volume, shape and pallet size of the customer's products change, only a little modification can be made on the touch screen. Palletizing speed 500 bags/hour. Only need to position grasp starting point and place point, teaching method is simple and easy to understand. All controls can be operated on the control cabinet screen, the operation is very simple.
Product advantage
1. Low energy consumption. Greatly reduce the operating cost of customers.
2. Simple structure and few parts. Therefore, the failure rate of parts is low, the performance is reliable, the maintenance is simple, the required inventory parts are few.
3. Small footprint. It is conducive to the layout of the production line in the customer's workshop, and can set aside a large warehouse area.
Our Advantages
Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional filling solution
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional filling solution
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
The sample service
1. We can send you the production video of the machine.
You are welcome to visit our factory at any time. You can see the machines in operation here. We'll arrange to pick you up when you come.
Customized service
1. We can design the machine according to your requirements (material, power, filling type, bottle type, etc.).
2. We will also give you professional advice.
After-sales service
1. We will provide the BILL of lading in time to ensure that you can get the qualified machine quickly.
2. After you complete the preparation conditions, our engineers will go to your factory for installation, testing and training.
We provide one year warranty, free of charge to provide vulnerable parts.
Successful cases
Through efficient cost control, we find the right balance with our customers: diversified production range, high-end packaging form. At the same time, the efficient operation of equipment improves the market competitiveness of enterprises. Wangji will provide customers with customized beverage production line solutions, including bottle design, label design, beverage preparation, packaging system and advertising solutions of the best solutions, to help customers easily start businesses, easy access to the market.
FAQ:
Frequently asked Questions:
Q1. May I visit your factory?
A1: Ok, our factory address: No.158 Huaxing Road, Jintan, Changzhou city, Jiangsu Province, China.
Q2. If we have a new product sample, could you help analyze and design the machine?
A2: Yes, our technicians can help analyze, design and test the new products you offer.
Q3. What can you buy from us?
A3: Bottle unscrambling machine, bottle washing machine, filling machine, capping machine, labeling machine, unpacking machine, packing machine.
Q4. What spare parts can you provide?
A4: After we have installed all the equipment, we will send you a list of spare parts for your reference.
Q5. What services can we provide?
A5: Delivery terms accepted :FOB,FCA,EXW;
Currency of payment accepted: USD, Euro;
Payment methods :T/T, TELEgraphic transfer, PayPal;
Language: English, Chinese
